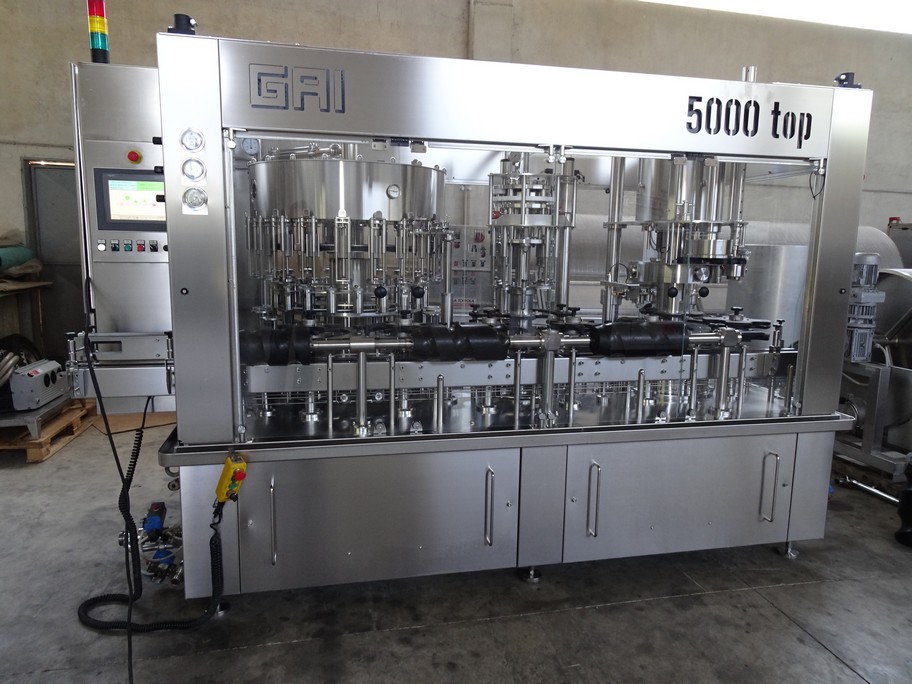

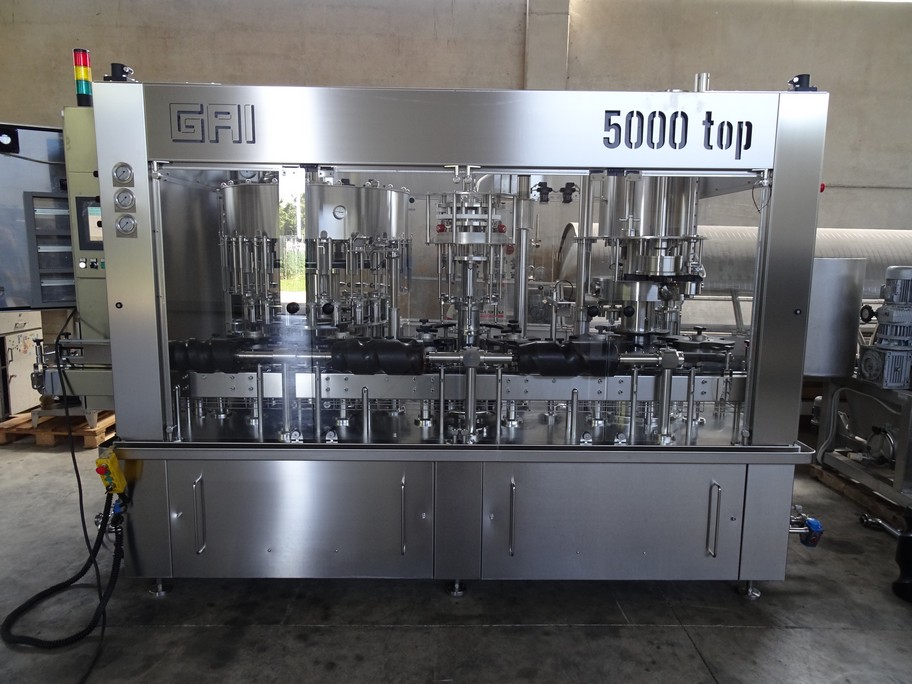

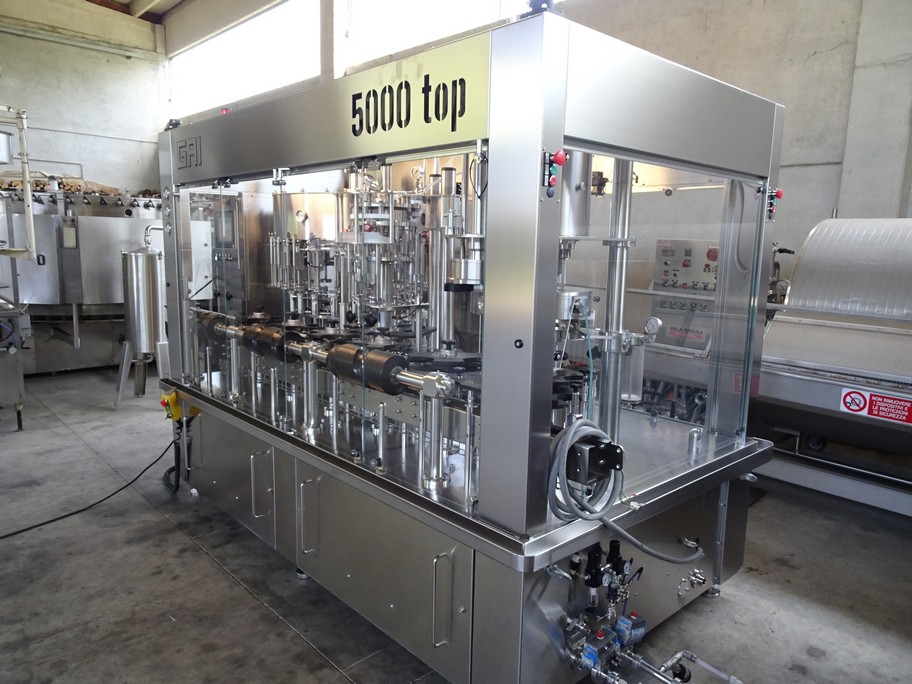

Gai Monoblock model 5000T, 20/4/4 composed by:

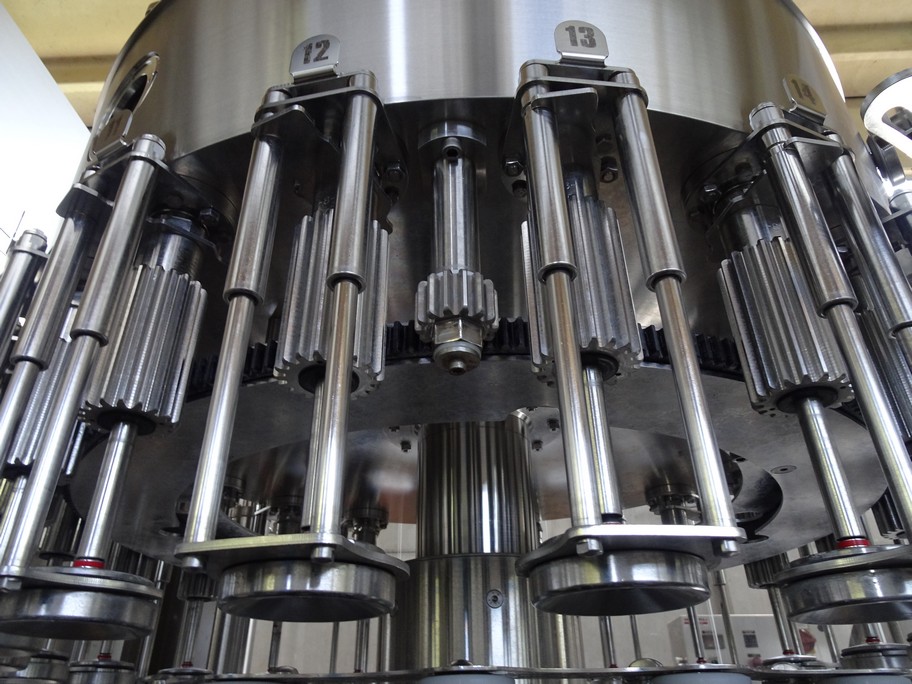

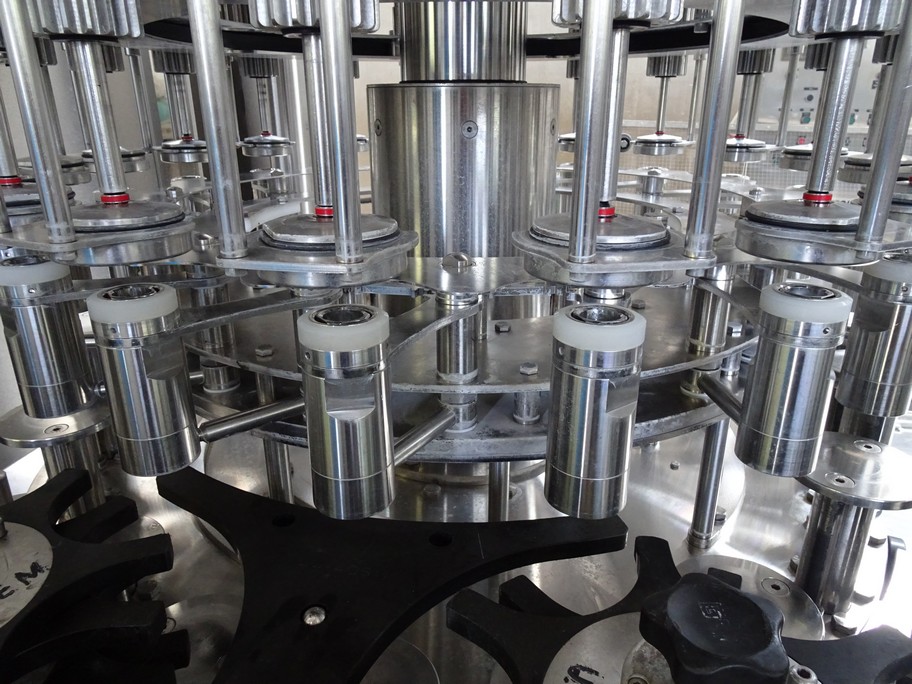

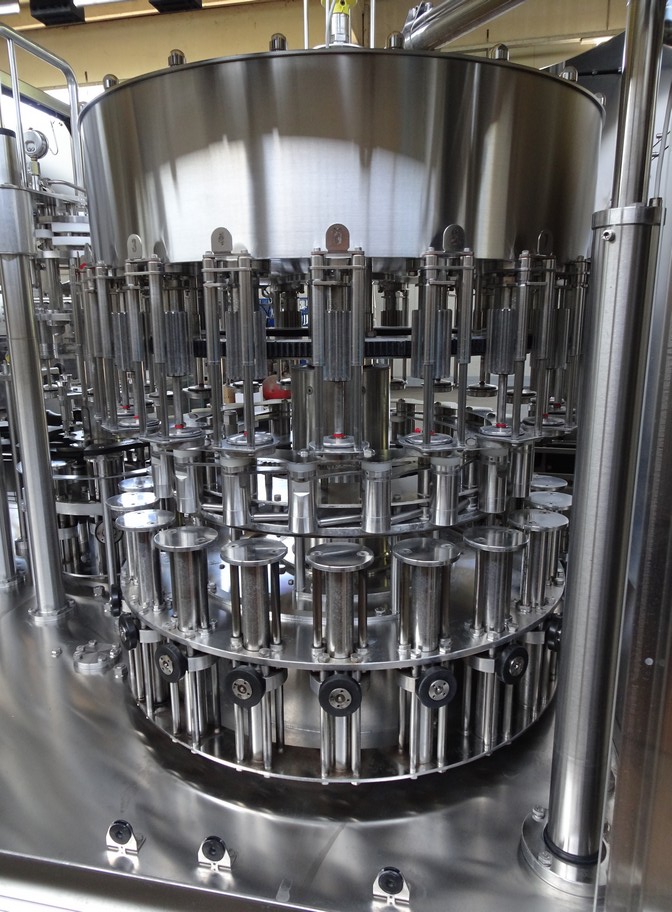

Filling machine with 20 filling valves, with slight depression and slight pressure system.
False bottles for washing and centralized level system with manual positioning for sterilizing the filling machine.
Level adjustment to centralized opening.
Four heads station of nitrogen injection in the bottle, with false bottles for sterilization.

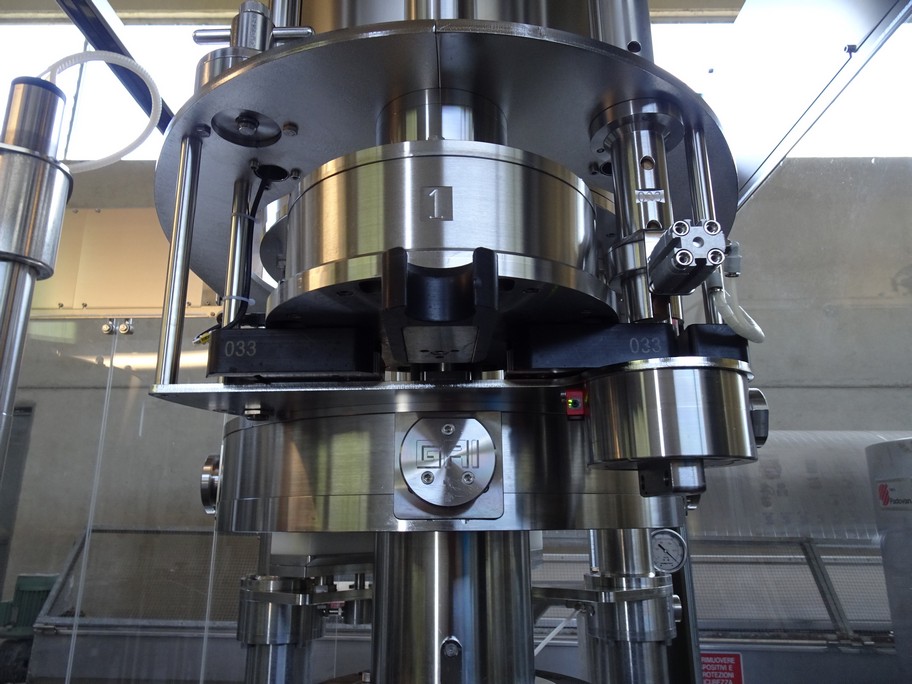

Four heads corking machine for natural cork and mushroom cork with pick-and-place distribution system and with vacuum before bottle corking.
The corker has the possibility to work the mushroom cork as the customer had an in-line isobaric filling machine.
Possibility to unhook the filling machine and unhook the corking machine.
Production: 4800 b/h about.
Cork presence proximity group.
Inverter for speed regulation.
Electric height adjustment for all turrets, different formats automatically selectable from the operator panel.

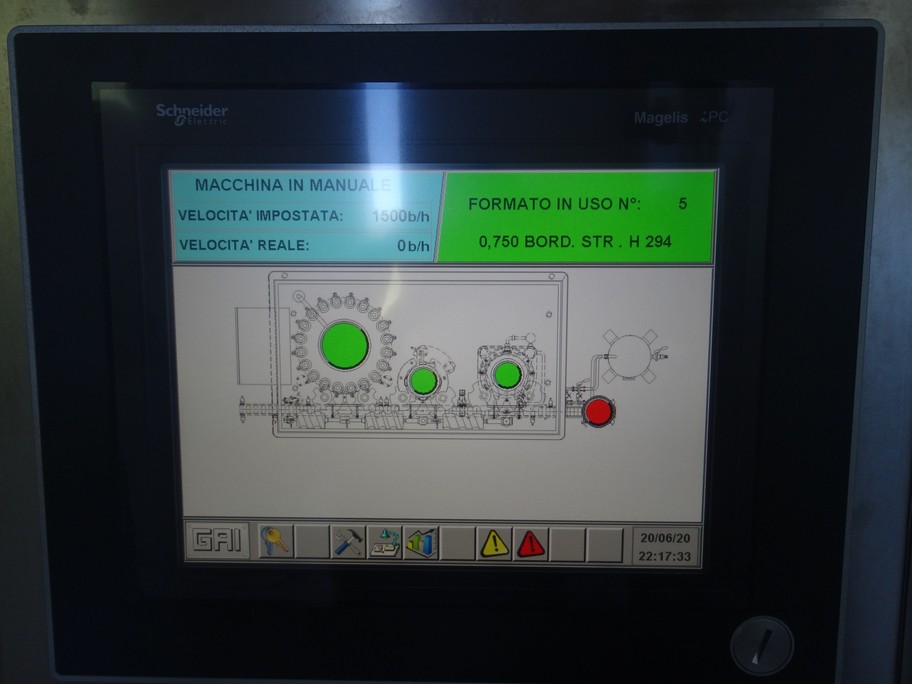

PLC and 10 ”color touchscreen.
Automatic washing cycle with signal exchange.
Power supply Volt 380/50 HZ, total installed power Kw 6.5.
Complete with CE certificate, use and maintenance manual and wiring diagram.
Dimensions: Length 3600mmX Width 1800mmX Height 2500mm. Weight Kg 5000 about.
The machine has always been maintained and kept efficient until disassembly.
